Akm旭化成电流传感器

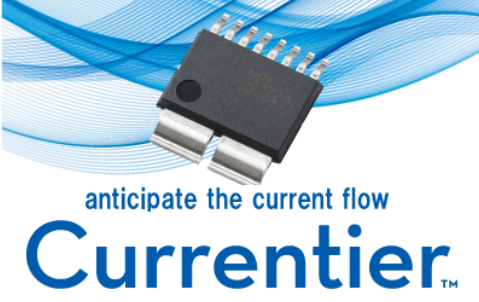

Currentier TM是由磁传感器领域的领先公司旭化成电子开发的霍尔型电流传感器，它利用了长期的专业知识。
Akm旭化成电流传感器开放式电流传感器IC，具有小封装，具有超过8mm的爬电距离和间隙距离（符合UL61800-5-1），是世界上精度最高，信噪比最高，可测量电流范围最广的集成电路 和最快的响应时间（*）。
凤凰快3通过接近封闭型的简单开放型（世界上最小的类别* 1）和高精度，高信噪比和高速响应（世界上最快的* 2）实现小型化。
| 零件编号 | ||||||||||||
| 包装类型 | 最大有效电流 | 线性感应范围（最小值） | 线性感应范围（最大） | 灵敏度 | 响应时间 | 电源电压（最小值） | 电源电压（典型值） | 电源电压（最大） | 工作温度 | 设备包装 | 针数 | |
| AK310H | SMD | 20 | -42 | 42 | 50 | 2 | 4.5 | 5 | 5.5 | -40 to 90 | SOP | 14 |
| CZ3700 | SMD | 60 | -5.3 | 5.3 | 400 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ2235 | through hole type | 50 | -85 | 85 | 15.5 | 1 | 2.7 | 3.3 | 3.63 | -40 to 110 | SIP | 7 |
| CQ3202 | SMD | 20 | -21.1 | 21.1 | 62.5 | 0.5 | 2.7 | 3.3 | 3.63 | -40 to 90 | VSOP | 10 |
| CZ3725 | SMD | 60 | -7.1 | 165.8 | 25 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ330A | SMD | 20 | -31.8 | 31.8 | 66 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CQ236B | through hole type | 50 | 0 | 25 | 160 | 1 | 4.5 | 5 | 5.5 | -40 to 110 | SIP | 7 |
| CZ3814 | SMD | 40 | -50 | 50 | 40 | 2 | 4.5 | 5 | 5.5 | -40 to 125 | SOP | 10 |
| CQ209A | SMD | 20 | -31.8 | 31.8 | 66 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CQ330E | SMD | 20 | 0 | 20.5 | 200 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CQ209B | SMD | 20 | -35 | 0 | 115 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CZ3A05 | SMD | 50 | -64.5 | 64.5 | 24 | 1 | 3 | 3.3 | 3.6 | -40 to 85 | SOP | 10 |
| CZ3A04 | SMD | 50 | -32.2 | 32.2 | 48 | 1 | 3 | 3.3 | 3.6 | -40 to 85 | SOP | 10 |
| CZ3726 | SMD | 60 | -14.9 | 345.2 | 12 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CZ3703 | SMD | 60 | -36 | 36 | 60 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ2332 | through hole type | 50 | -21 | 21 | 100 | 1 | 4.5 | 5 | 5.5 | -40 to 110 | SIP | 7 |
| CQ3303 | SMD | 20 | -35 | 35 | 60 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CZ3813 | SMD | 40 | -33 | 33 | 60 | 2 | 4.5 | 5 | 5.5 | -40 to 125 | SOP | 10 |
| AK3103 | SMD | 20 | -35 | 35 | 60 | 2 | 4.5 | 5 | 5.5 | -40 to 90 | SOP | 14 |
| CZ3AG2 | 50 | -14 | 14 | 100 | 3.6 | 4.5 | 5 | 5.5 | -40 to 85 | SOP | 10 | |
| CZ3706 | SMD | 60 | -180 | 180 | 12 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CZ3720 | SMD | 60 | -0.4 | 10.3 | 400 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ2065 | through hole type | 50 | -85 | 85 | 25 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CQ2093 | SMD | 20 | -35 | 35 | 60 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CQ2335 | through hole type | 50 | -85 | 85 | 25 | 1 | 4.5 | 5 | 5.5 | -40 to 110 | SIP | 7 |
| CQ320B | SMD | 20 | -1.1 | 20.9 | 120 | 0.5 | 2.7 | 3.3 | 3.63 | -40 to 90 | VSOP | 10 |
| CQ330G | SMD | 20 | -4.5 | 4.5 | 450 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CQ2232 | through hole type | 50 | -21 | 21 | 62.5 | 1 | 2.7 | 3.3 | 3.63 | -40 to 110 | SIP | 7 |
| CZ3702 | SMD | 60 | -21.5 | 21.5 | 100 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ206B | through hole type | 50 | 0 | 45 | 90 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CQ330J | SMD | 20 | -2 | 42 | 82.7 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CQ3300 | SMD | 20 | -6.4 | 6.4 | 325 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CZ3AG6 | SMD | 50 | -93.3 | 93.3 | 15 | 3.6 | 4.5 | 5 | 5.5 | -40 to 85 | SOP | 10 |
| AK3102 | SMD | 20 | -21 | 21 | 100 | 2 | 4.5 | 5 | 5.5 | -40 to 90 | SOP | 14 |
| CZ3701 | SMD | 60 | -10.7 | 10.7 | 200 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ3201 | SMD | 20 | -10.1 | 10.1 | 130 | 0.5 | 2.7 | 3.3 | 3.63 | -40 to 90 | VSOP | 10 |
| CZ3721 | SMD | 60 | -0.8 | 20.6 | 200 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CZ3722 | SMD | 60 | -1.7 | 41.3 | 100 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ3204 | SMD | 20 | -44 | 44 | 30 | 0.5 | 2.7 | 3.3 | 3.63 | -40 to 90 | VSOP | 10 |
| CQ2234 | through hole type | 50 | -54 | 54 | 24.5 | 1 | 2.7 | 3.3 | 3.63 | -40 to 110 | SIP | 7 |
| CQ2092 | SMD | 20 | -21 | 21 | 100 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CZ3723 | SMD | 60 | -2.9 | 68.8 | 60 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ206A | through hole type | 50 | -46 | 46 | 45 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CQ2064 | through hole type | 50 | -54 | 54 | 40 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CZ3704 | SMD | 60 | -54 | 54 | 40 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ330H | SMD | 20 | -42 | 42 | 50 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CQ2366 | through hole type | 50 | -170 | 170 | 12 | 1.5 | 4.5 | 5 | 5.5 | -40 to 110 | SIP | 7 |
| CZ3724 | SMD | 60 | -4.4 | 103.4 | 40 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CQ3302 | SMD | 20 | -21 | 21 | 100 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CZ3AG4 | SMD | 50 | -29.1 | 29.1 | 48 | 3.6 | 4.5 | 5 | 5.5 | -40 to 85 | SOP | 10 |
| CZ3A07 | SMD | 50 | -129.1 | 129.1 | 12 | 1 | 3 | 3.3 | 3.6 | -40 to 85 | SOP | 10 |
| CQ3203 | SMD | 20 | -35.7 | 35.7 | 37 | 0.5 | 2.7 | 3.3 | 3.63 | -40 to 90 | VSOP | 10 |
| CQ2334 | through hole type | 50 | -54 | 54 | 40 | 1 | 4.5 | 5 | 5.5 | -40 to 110 | SIP | 7 |
| CZ3705 | SMD | 60 | -86.4 | 86.4 | 25 | 1 | 4.5 | 5 | 5.5 | -40 to 105 | SOP | 10 |
| CZ3AG1 | SMD | 50 | -11.6 | 11.6 | 120 | 3.6 | 4.5 | 5 | 5.5 | -40 to 85 | SOP | 10 |
| CZ3AG5 | SMD | 50 | -58.3 | 58.3 | 24 | 3.6 | 4.5 | 5 | 5.5 | -40 to 85 | SOP | 10 |
| CQ330F | SMD | 20 | -2 | 42 | 80 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CZ3815 | SMD | 40 | -60 | 60 | 33.3 | 2 | 4.5 | 5 | 5.5 | -40 to 125 | SOP | 10 |
| CZ3A03 | SMD | 50 | -22.1 | 22.1 | 70 | 1 | 3 | 3.3 | 3.6 | -40 to 85 | SOP | 10 |
| CQ330B | SMD | 20 | 0 | 21 | 195 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CQ2333 | through hole type | 50 | -35 | 35 | 60 | 1 | 4.5 | 5 | 5.5 | -40 to 110 | SIP | 7 |
| CQ3200 | SMD | 20 | -8.5 | 8.5 | 155 | 0.5 | 2.7 | 3.3 | 3.63 | -40 to 90 | VSOP | 10 |
| CQ320A | SMD | 20 | -29.3 | 29.3 | 45 | 0.5 | 2.7 | 3.3 | 3.63 | -40 to 90 | VSOP | 10 |
| CQ2063 | through hole type | 50 | -35 | 35 | 60 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CQ3301 | SMD | 20 | -10.7 | 10.7 | 195 | 0.5 | 4.5 | 5 | 5.5 | -40 to 90 | VSOP | 10 |
| CZ3AG3 | 50 | -20 | 20 | 70 | 3.6 | 4.5 | 5 | 5.5 | -40 to 85 | SOP | 10 | |
| CQ2233 | through hole type | 50 | -35 | 35 | 37.5 | 1 | 2.7 | 3.3 | 3.63 | -40 to 110 | SIP | 7 |
| CZ3A02 | SMD | 50 | -15.5 | 15.5 | 100 | 1 | 3 | 3.3 | 3.6 | -40 to 85 | SOP | 10 |
| CQ209D | SMD | 20 | -41 | 41 | 50 | 1 | 4.5 | 5 | 5.5 | -40 to 90 | SIP | 7 |
| CZ3A01 | SMD | 50 | -12.9 | 12.9 | 120 | 1 | 3 | 3.3 | 3.6 | -40 to 85 | SOP | 10 |
| CZ3A06 | SMD | 50 | -103.3 | 103.3 | 15 | 1 | 3 | 3.3 | 3.6 | -40 to 85 | SOP | 10 |
| CZ3AG7 | 50 | -116.6 | 116.6 | 12 | 3.6 | 4.5 | 5 | 5.5 | -40 to 85 | SOP | 10 | |
| AK3101 | SMD | 20 | -10.7 | 10.7 | 195 | 2 | 4.5 | 5 | 5.5 | -40 to 90 | SOP | 14 |
